- FunctionFor Air Return
- Surface TreatmentElectrical Deposition+ Powder Coating
- ColorWhite
- DesignLouvered
- MaterialAluminum
- Product Dimension 23-3/4'×23-3/4' (24“×24" openings)
- Extruded aluminum constructtion
- Fixed horizontal curved blades?
- Grille mounts flush with T-bar celling
- Use nominal 1' thick filters (not included)
- Overall size 23-3/4'×23-3/4' (24“×24" openings)
- White durable finish?
-

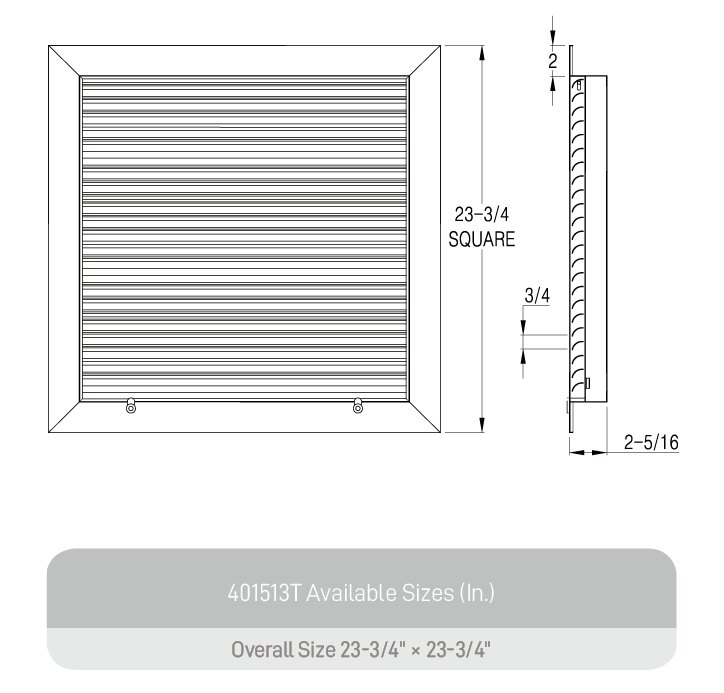

401513T Drawing
