產品名稱

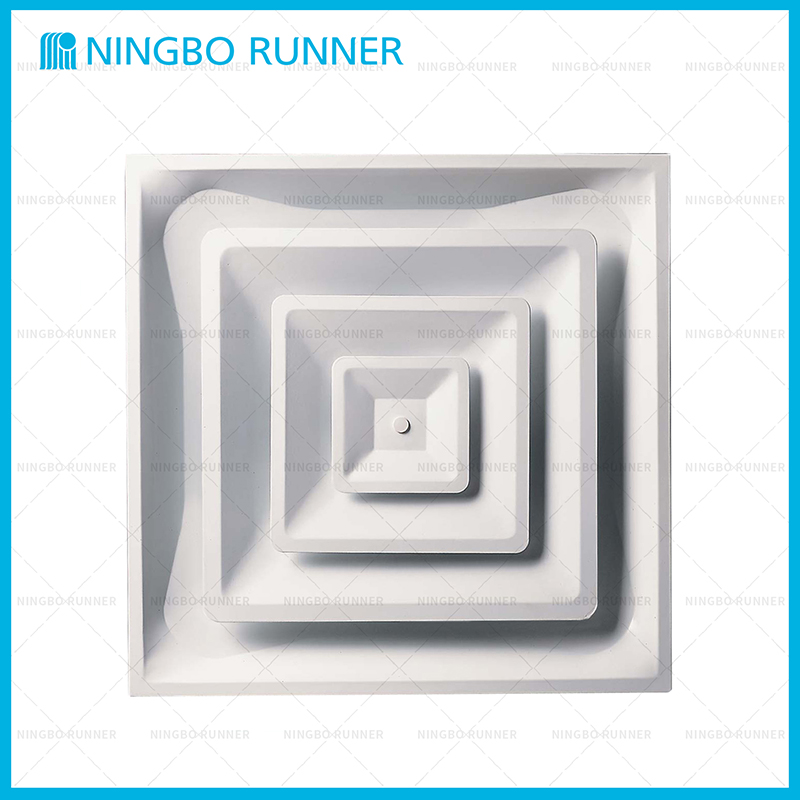

402603I T-Bar Steel 3-Cone Fixed-Pattern Diffuser without Collar, with Insulation
產品型號
402603I
參數
產品特點
下載
- FunctionFor Air Return
- Surface TreatmentElectrical Deposition+ Powder Coating
- ColorWhite
- Design3-Cone
- MaterialSteel
- Product Dimension23-3/4'×23-3/4' (24'×24' openings)
- Steel construction?
- Use for T-bar ceiling?
- Three-cone fixed core
- 360-degree air diffusion
- With insulation
- Accept model #403302 snap in collar ring (6'-14')?
- Overall size 23-3/4'×23-3/4' (24“×24" openings)
- White durable finish ?

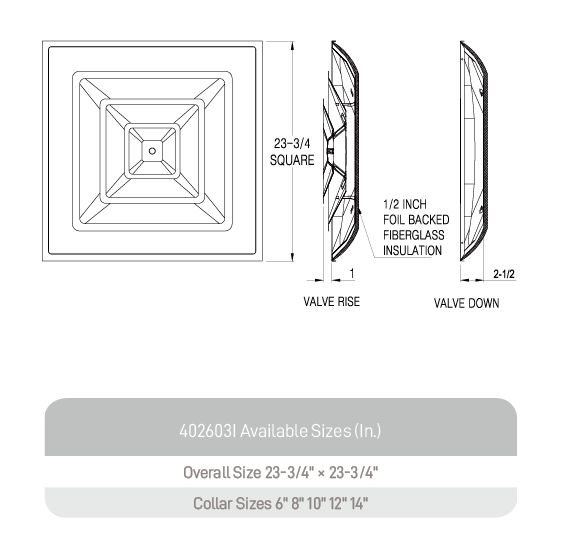

- 402603I Drawing 下載文件
