產品名稱
402414CR6 T-Bar Steel 3-Cone Fixed -Pattern Diffuser with Collar and R6 Insulation
產品型號
402414R6
參數
產品特點
下載
- FunctionFor Air Supply or Air Return
- Surface TreatmentElectrical Deposition+ Powder Coating
- ColorWhite
- Design3-Cone
- MaterialSteel
- Product Dimension23-3/4'×23-3/4' (24'×24' openings)
- Steel construction?
- Use for T-bar ceiling ?
- With R6 insulation
- Three-cone fixed core
- 360-degree air diffusion
- Accept model #403101 butterfly damper (6'-14')
- Overall size 23-3/4'×23-3/4' (24“×24" openings)
- White durable finish ?
-

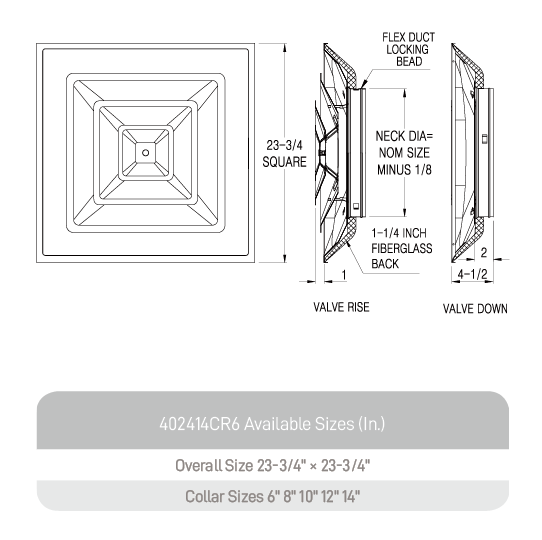

402414CR6 Drawing
