產品名稱

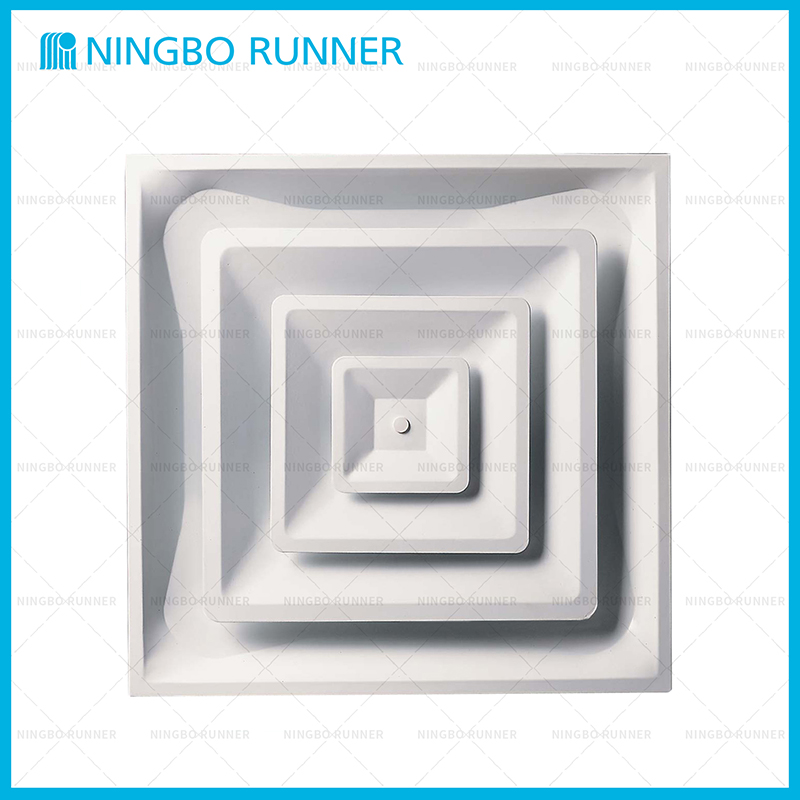

402604C T-Bar Steel 3-Cone Fixed-Pattern Diffuser with Collar
產品型號
402604C
參數
產品特點
下載
- FunctionFor Air Return
- Surface TreatmentElectrical Deposition+ Powder Coating
- ColorWhite
- Design3-Cone
- MaterialSteel
- Product Dimension23-3/4'×23-3/4' (24'×24' openings)
- Steel construction?
- Use for T-Bar ceiling ?
- Three-cone fixed core
- 360-degree air diffusion
- Can match insulation
- Accept model #403101 butterfly damper ?(6'-14')
- Overall size 23-3/4'×23-3/4' (24“×24" openings)
- Fixed collar 6' to 14'
- White durable finish?
-

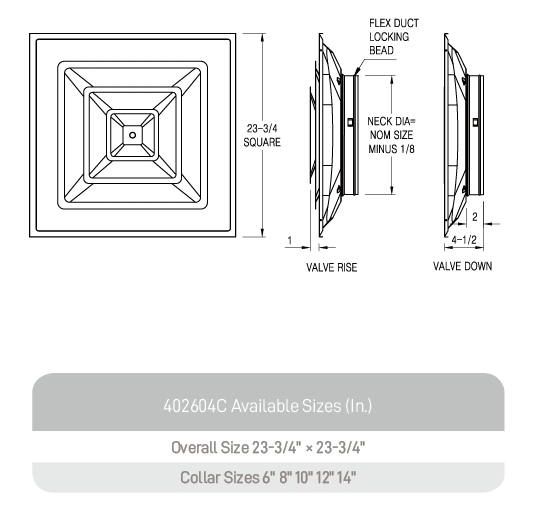

402604C Drawing
