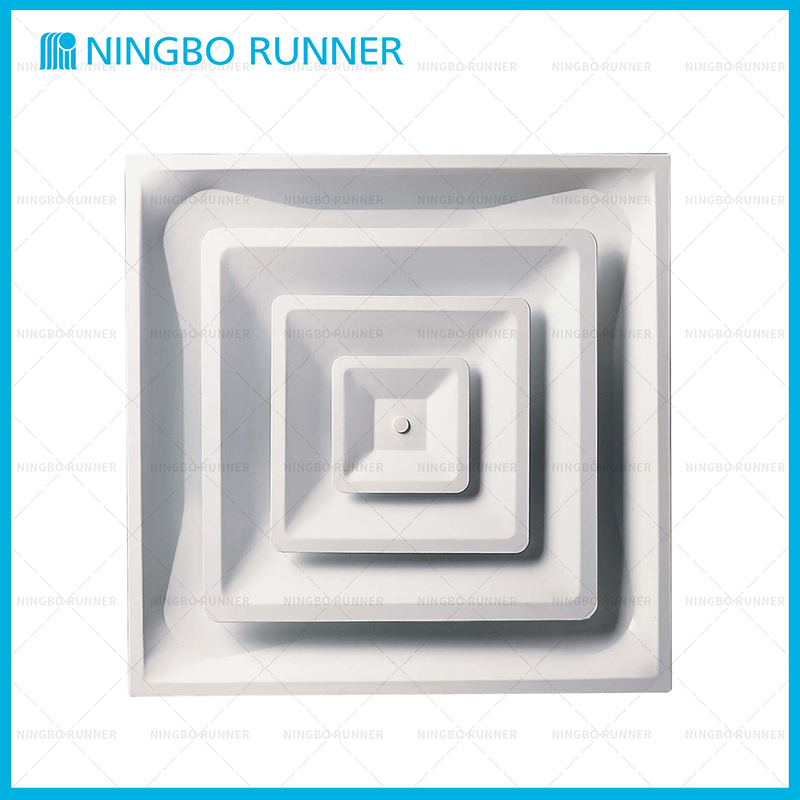

402603 T-Bar Steel 3-Cone Fixed-Pattern Diffuser without Collar and Insulation
產(chǎn)品型號
402603
參數(shù)
產(chǎn)品特點
下載
- FunctionFor Air Return
- Surface TreatmentElectrical Deposition+ Powder Coating
- ColorWhite
- Design3-Cone
- MaterialSteel
- Product Dimension23-3/4'×23-3/4' (24'×24' openings)
- Steel construction?
- Use for T-bar ceiling?
- Three-cone fixed core
- Can match insulation?
- 360-degree air diffusion?
- Accept model #403302 snap in collar ring (6'-14')?
- Overall size 23-3/4'×23-3/4' (24“×24" openings)?
- White durable finish?
-

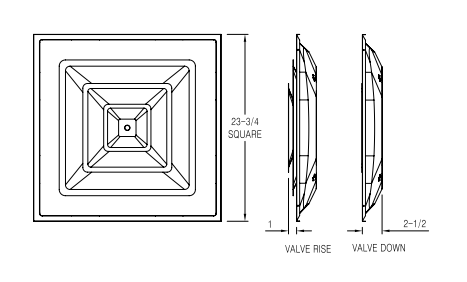

402603 Drawing
