- FunctionFor Air Return
- Surface TreatmentElectrical Deposition+ Powder Coating
- ColorWhite
- DesignPerforated
- MaterialSteel
- Product Dimension23-3/4'×23-3/4' (24“×24
- Steel construction?
- Use for T-bar ceiling ?
- Perforated faceplate
- Adjustable deflectors?
- Removable hinged face for easy air flow adjustment and cleaning?
- Overall size 23-3/4'×23-3/4' (24“×24" openings)
- Accept model #403101 butterfly damper (6'-14')
- Fixed collar 6' to 14'
- Formed metal back panel?
- White durable finish
-

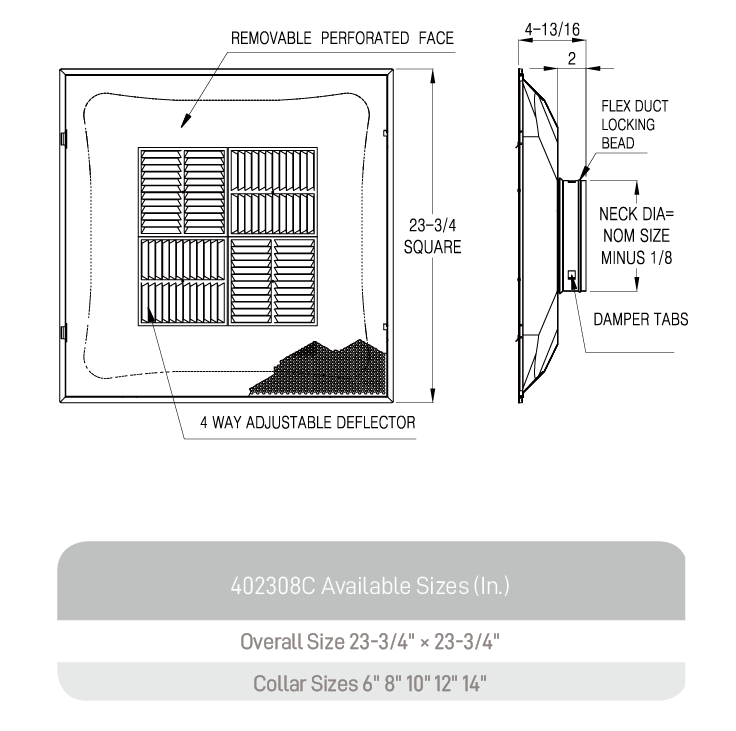

402308C Drawing
