中/EN

威霖網群

產品名稱

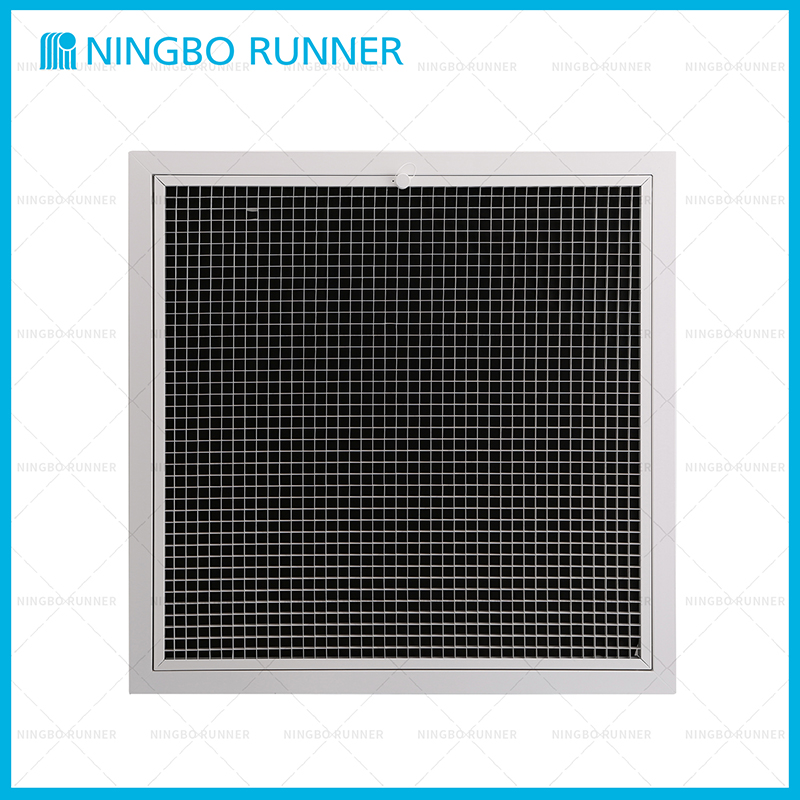

402501T T-Bar Aluminum Egg Crate Filter Grille

產品型號

402501T

下載鏈接

參數

產品特點

下載

FunctionFor Air Supply or Air Return
Surface TreatmentElectrical Deposition+ Powder Coating
ColorWhite
DesignEgg Crate
MaterialAluminum
Product Dimension 23-3/4'×23-3/4' (24“×24" openings)

Aluminum construction?
Use for T-bar ceiling ?
1/2' grid core?
Hinged on the bottom edge, face is removable?
Overall size 23-3/4'×23-3/4' (24“×24" openings)
White durable finish

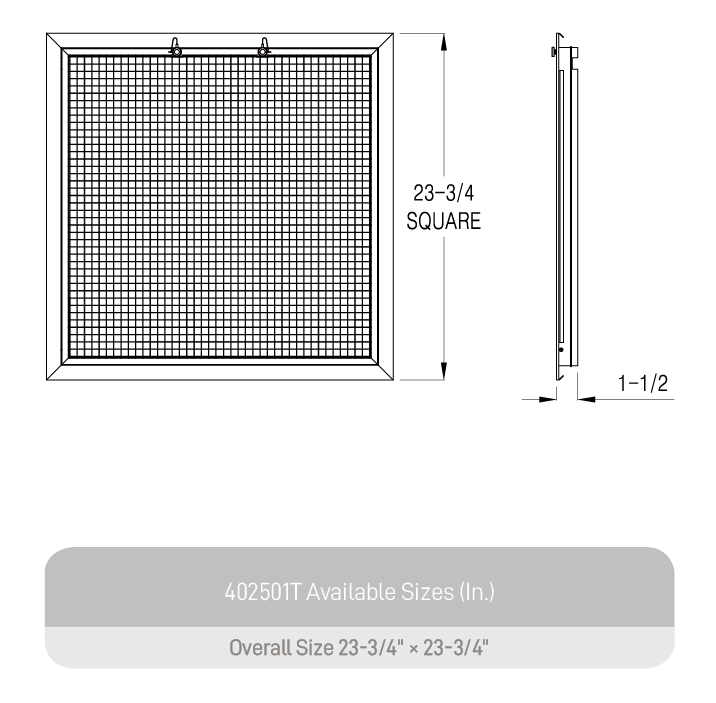

402501T Drawing 下載文件
