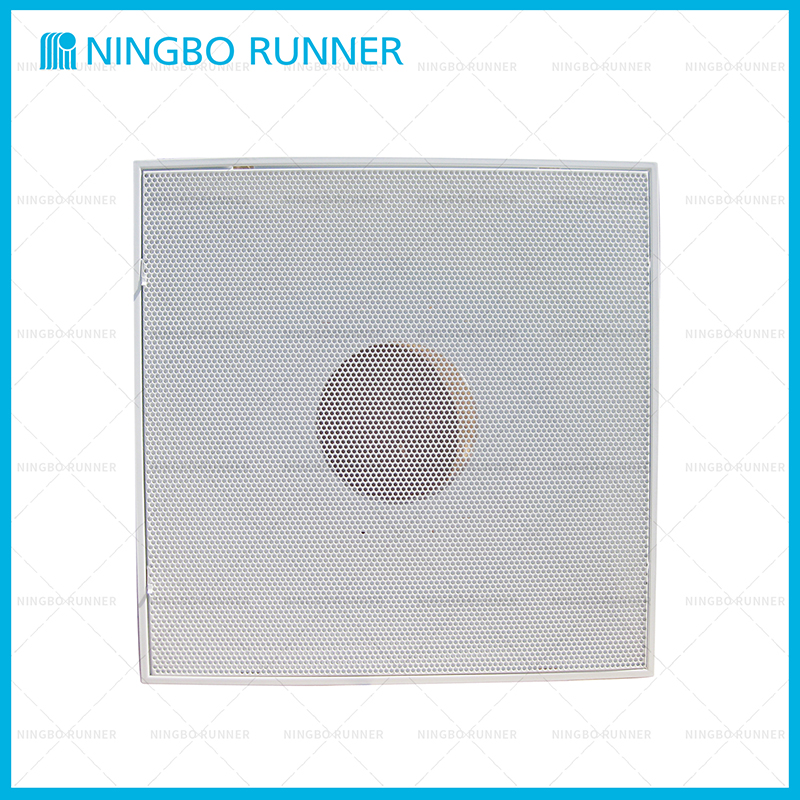

402411R6 T-Bar Steel Perforated Ruturn Filter Grille with R6 Insulation

產品型號

402411R6

下載鏈接

參數(shù)

產品特點

下載

FunctionFor Air Return
Surface TreatmentElectrical Deposition+ Powder Coating
ColorWhite
DesignPerforated
MaterialSteel
Product Dimension23-3/4'×23-3/4' (24“×24

Steel construction?
Use for T-bar ceiling?
Perforated faceplate?
Overall size 23-3/4'×23-3/4' (24“×24" openings)?
Removable hinged face for easy air flow adjustment and cleaning?
Use nominal 1' thick filters (not included)?
With R6 insulation?
White durable finish?

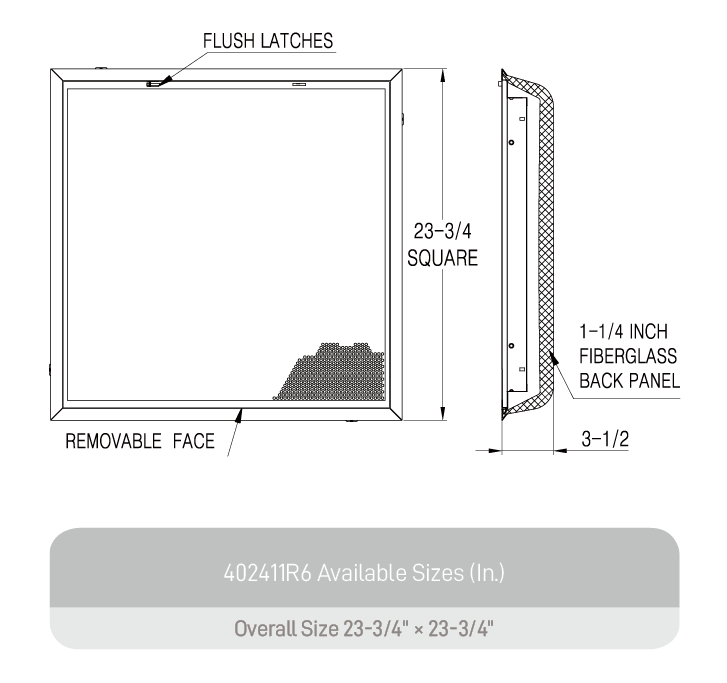

402411R6 Drawing 下載文件
