產(chǎn)品名稱

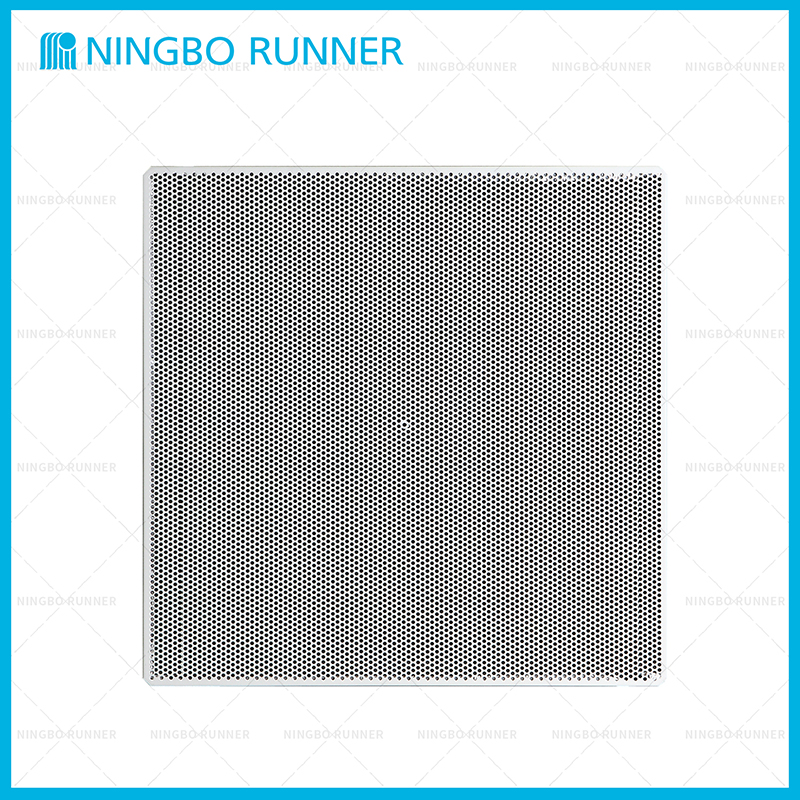

402408R6 T-Bar Steel Perforated Supply Diffuser with R6 Insulation
產(chǎn)品型號
402408R6
參數(shù)
產(chǎn)品特點
下載
- FunctionFor Air Supply
- Surface TreatmentElectrical Deposition+ Powder Coating
- ColorWhite
- DesignPerforated
- MaterialSteel
- Product Dimension 23-3/4'×23-3/4' (24“×24" openings)
- Steel construction?
- Use for T-Bar ceiling ?
- Perforated faceplate?
- Fixed square deflector
- With R6 insulation?
- Overall size 23-3/4' X23-3/4' (24' X 24' openings)
- White durable finish

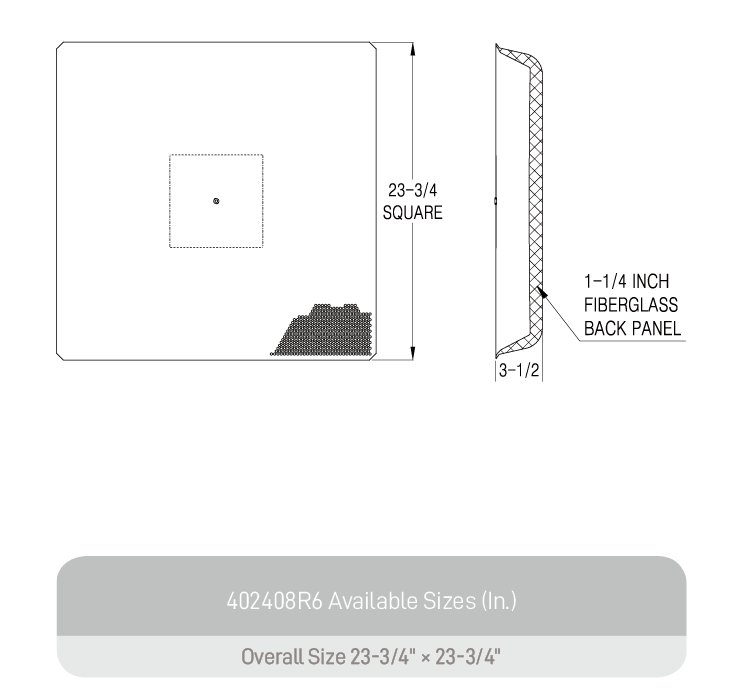

- 402408R6 Drawing 下載文件
