產(chǎn)品名稱
402306I T-Bar Aluminum 4-way Perforated Diffuser with Insulation
產(chǎn)品型號
402306I
參數(shù)
產(chǎn)品特點
下載
- FunctionFor Air Return
- Surface TreatmentElectrical Deposition+ Powder Coating
- ColorWhite
- Design4-Way Perforated
- MaterialSteel
- Product Dimension23-3/4'×23-3/4' (24'×24' openings)
- Stamped aluminum face?
- Use for T-bar ceiling?
- Four-way, perforated faceplate?
- With insulation?

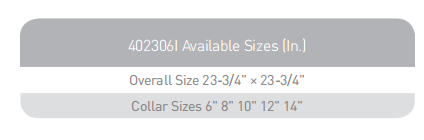

- Overall size 23-3/4'×23-3/4' (24“×24" openings)
- Accept model #403302 snap-in collar ring (6'-14')
- Formed metal back panel
- White durable finish?

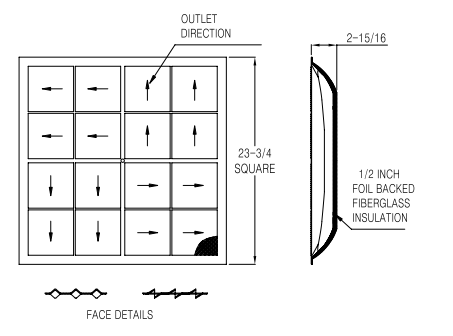

- 402306I Drawing 下載文件
